The hardware ecosystem is rapidly evolving, with increasing interest in translating low-level programs across different instruction set architectures (ISAs) in a quick, flexible, and correct way to enhance the portability and longevity of existing code. A particularly challenging class of this transpilation problem is translating between complex- (CISC) and reduced- (RISC) hardware architectures, due to fundamental differences in instruction complexity, memory models, and execution paradigms.

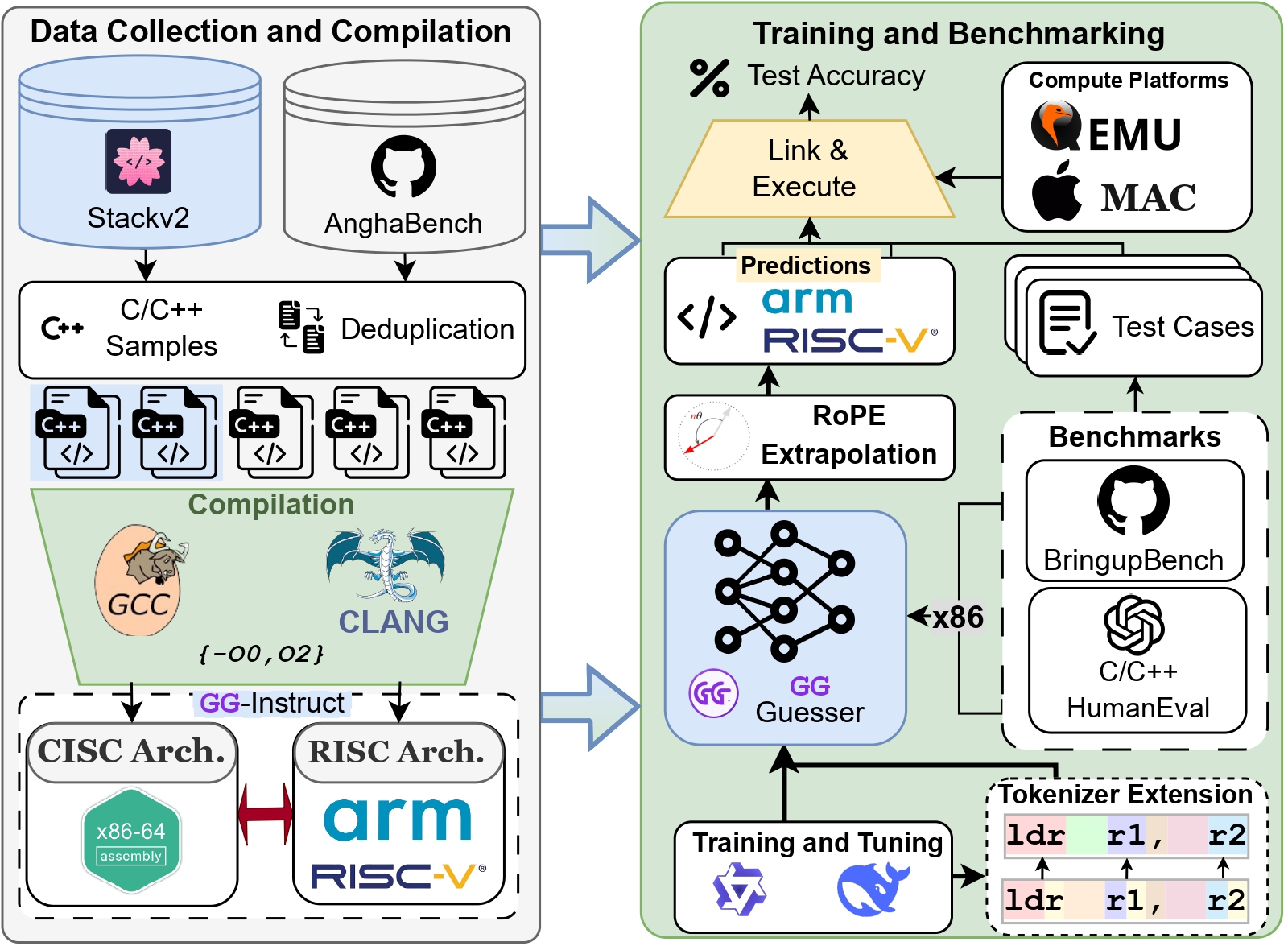

In this work, we introduce GG (Guaranteed Guess), an ISA-centric transpilation pipeline that combines the translation power of pre-trained large language models (LLMs) with the rigor of established software testing constructs. Our method generates candidate translations using an LLM from one ISA to another, and embeds such translations within a software-testing framework to build quantifiable confidence in the translation. We evaluate our GG approach over two diverse datasets, enforce high code coverage (>98%) across unit tests, and achieve functional/semantic correctness of 99% on HumanEval programs and 49% on BringupBench programs, respectively. Further, we compare our approach to the state-of-the-art Rosetta 2 framework on Apple Silicon, showcasing 1.73× faster runtime performance, 1.47× better energy efficiency, and 2.41× better memory usage for our transpiled code, demonstrating the effectiveness of GG for real-world CISC-to-RISC translation tasks.
GG is trained on 1.32M samples derived from AnghaBench (1M programs) and The StackV2 (306k programs), compiled to both x86 (CISC) and ARM/RISC-V (RISC) targets under optimization levels -O0 and -O2 to expose models to both semantically transparent and performance-optimized binaries.
The training process uses DeepSeek-Coder and Qwen2.5-Coder as base models, with specialized tokenizer extensions for assembly opcodes and registers, RoPE extrapolation for longer context, and beam search decoding for improved accuracy.

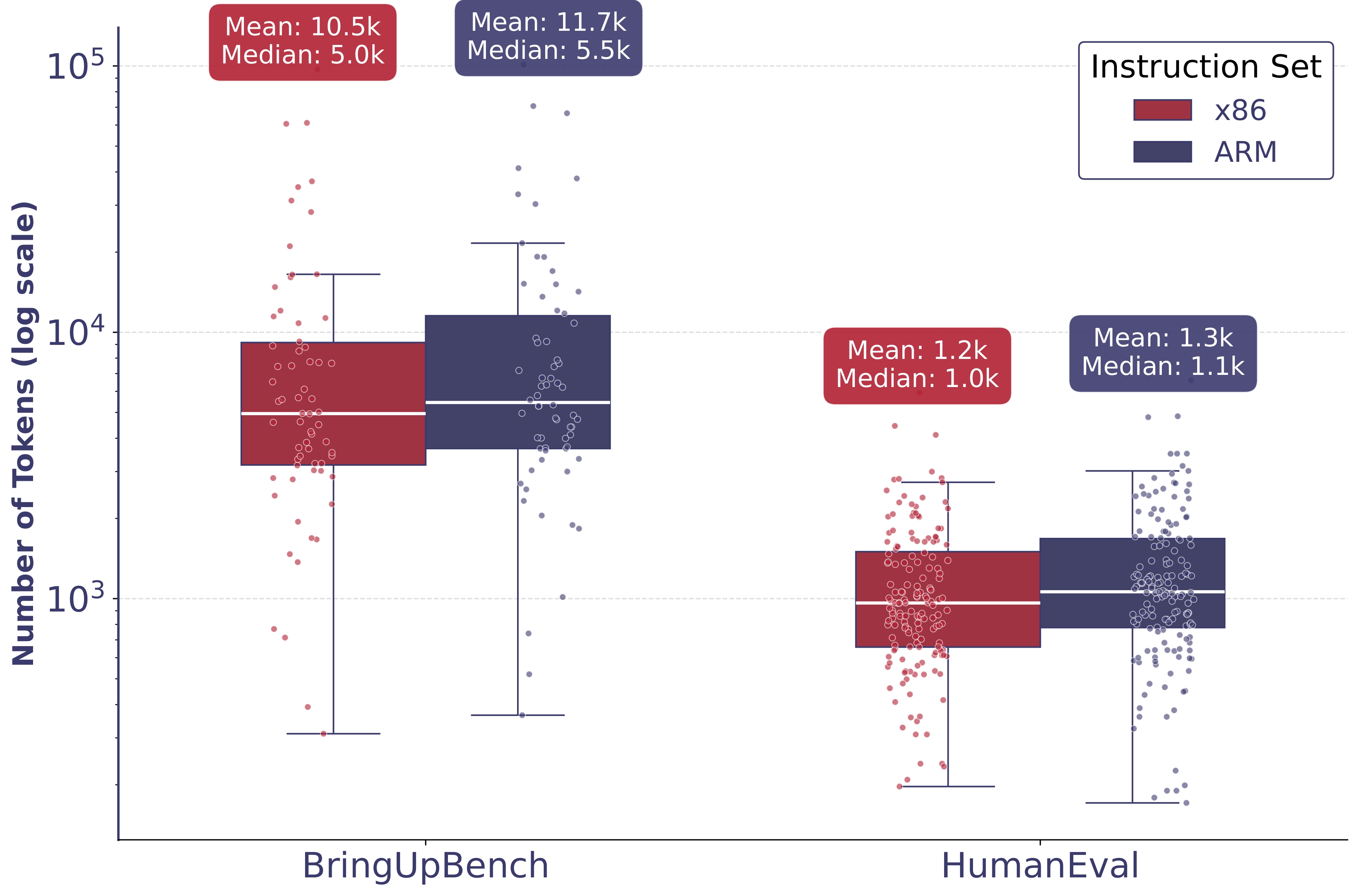

We evaluate GG using two complementary benchmarks: HumanEval-C with 164 programming problems and BringUpBench with 65 bare-metal programs (85-5751 lines of code), providing comprehensive coverage from isolated functions to full project structures with internal libraries.
GG models significantly outperform all baseline models across different architectures and optimization levels. Most baseline models achieve 0% accuracy, highlighting the unique difficulty of low-level ISA translation.
| Model | ARMv5 (-O0) | ARMv8 (-O0) | ARMv8 (-O2) | BringupBench (-O0) |
|---|---|---|---|---|
| GPT-4o | 8.48% | 10.3% | 4.24% | 1.54% |
| Qwen2.5-Coder-1.5B | 0% | 0% | 0% | 0% |
| StarCoder2-3B | 0% | 0% | 0% | 0% |
| GG-DeepSeek-1.3B | 79.25% | 75.15% | 10.3% | 3.08% |
| GG-0.5B | 90.85% | 86.06% | 25.45% | 27.69% |
| GG-1.5B | 93.71% | 99.39% | 45.12% | 49.23% |
We conducted a real-world study on Apple M2 Pro comparing GG against Rosetta 2 across execution time, CPU energy, and memory usage. GG achieves near-native performance while significantly outperforming Rosetta 2 across all metrics.
| Metric | Rosetta 2 | GG (Ours) | Native | Improvement |
|---|---|---|---|---|
| Execution Time (ms) | 13.94 | 8.03 | 7.39 | 1.73× faster |
| CPU Energy (J) | 7.50 | 5.09 | 5.07 | 1.47× better |
| RAM Usage (MB) | 2.49 | 1.03 | 1.03 | 2.41× better |
Our ablation study shows incremental improvements from each component, with data scaling providing the biggest leap and architectural choices compounding gains toward near-perfect accuracy.
| Component | ARMv8 Accuracy | Impact (Δ) |
|---|---|---|
| Qwen2.5-Coder Baseline | 0% | – |
| + 1M AnghaBench | 93.94% | +93.94% |
| + 0.3M Stackv2 | 95.38% | +1.44% |
| + RoPE Extrapolation | 97.14% | +1.76% |
| + Extended Tokenizer | 98.18% | +1.04% |
| + 8 Beam Search | 99.39% | +1.21% |

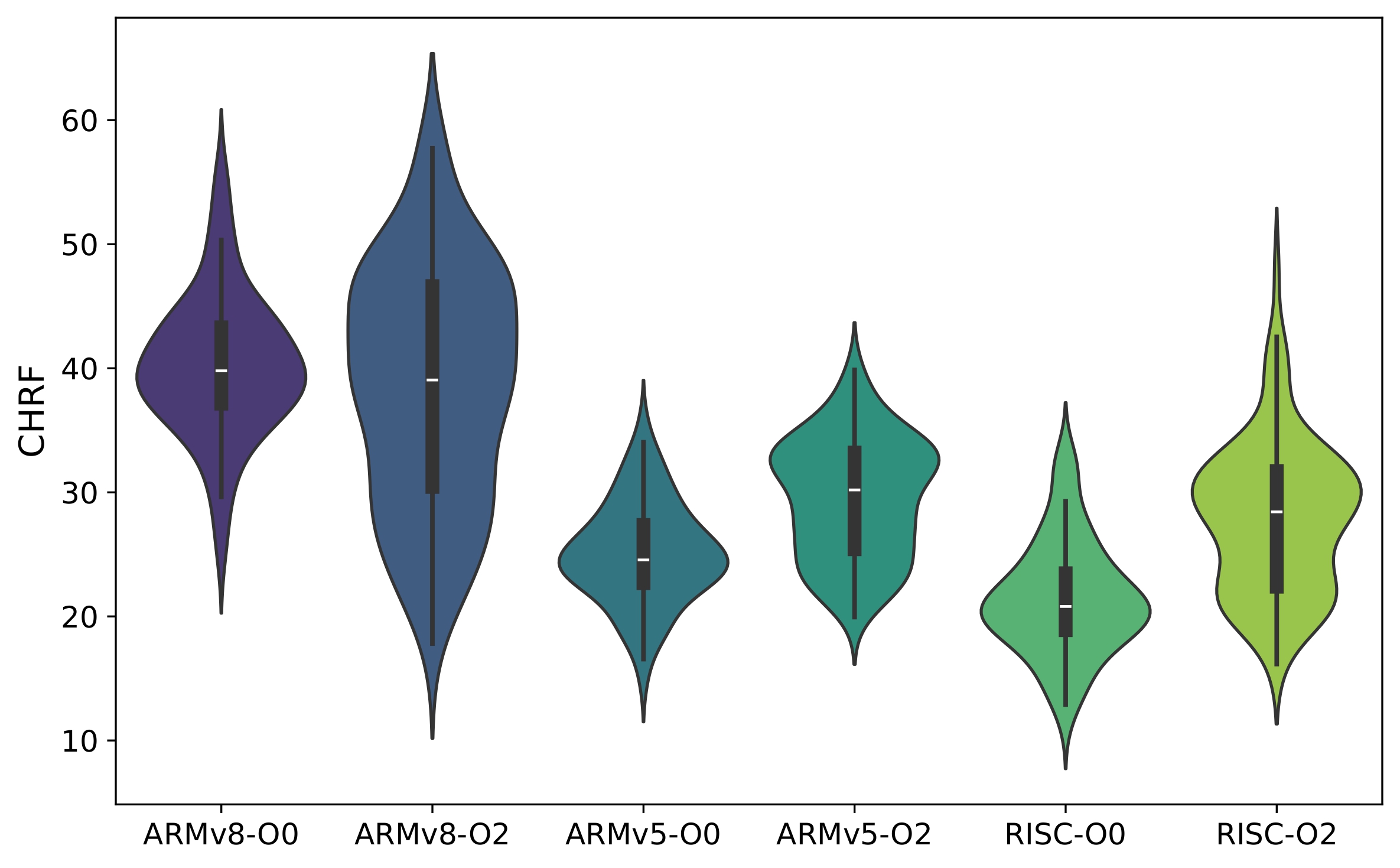

We observe a direct correlation between ISA similarity and transpilation accuracy. ARMv8 exhibits the highest similarity to x86 (40.19%), followed by ARMv5 (25.09%) and RISC-V64 (21.41%), directly correlating with model accuracy performance across these architectures.
Additionally, we analyze how compiler optimization levels affect opcode usage patterns in ARMv8.
At -O2 optimization, mov instructions become dominant (+14.8%), indicating more register
reuse and reduced memory traffic, which makes the learning task more challenging for the model.
@article{heakl2025guaranteed,
title={Guaranteed Guess: A Language Modeling Approach for CISC-to-RISC Transpilation with Testing Guarantees},
author={Heakl, Ahmed and Hashmi, Sarim and Abi, Chaimaa and Lee, Celine and Mahmoud, Abdulrahman},
journal={arXiv preprint},
year={2025},
note={MBZUAI, Cornell University}
}
